Ku High-Throughput Satellite IoT Service

Data & Telecom

Broadband Satellite IoT Service

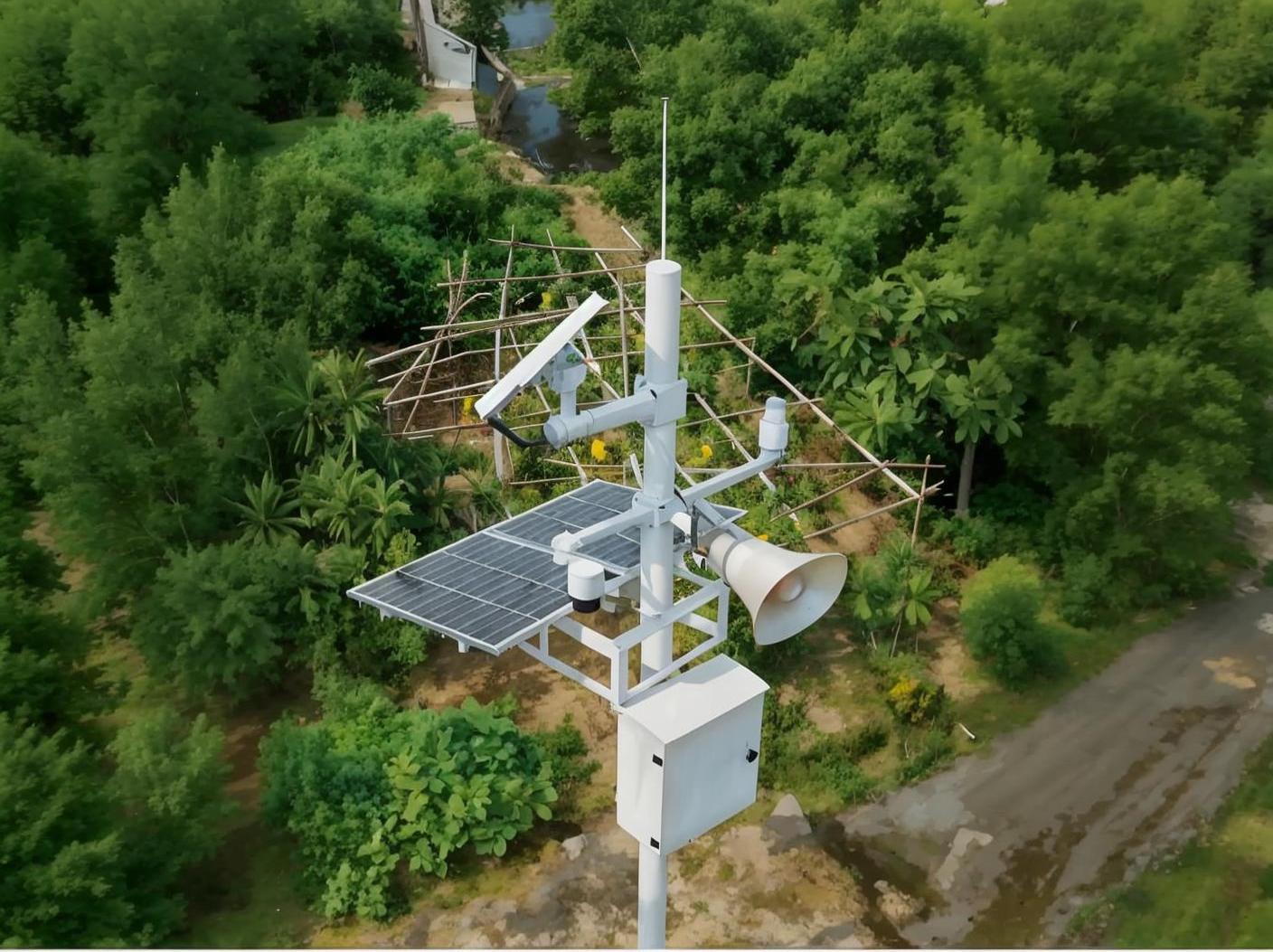

Based on GEO satellite's wide coverage, and cost effective satellite IoT terminals that integrate satellite communication modules with 4G/5G cellular modules, our satellite IoT service supports the connection of meteorological sensors, imaging devices, audio/video equipment, broadcast speakers, and more. It is primarily designed for data collection and remote monitoring/maintenance in remote areas, as well as early warning systems in disaster-prone regions. The Ku-band IoT terminals features a compact size, low power consumption, high transmission rates, easy activation and operation, and excellent outdoor weather resistance.

Compared to traditional terrestrial solutions, the service has advantages of wide coverage, high reliability, easy deployable, and cost-effectiveness.

Compared to LEO satellite solutions, the service has advantages of high transmission rates, which enables video monitoring and real-time calls.

Application Scenarios：

Disaster warning
Dam & pipeline monitoring
Disaster relief
Territorial monitoring

Key Features：

Supports multi-mode communication, ensuring seamless connectivity under all extreme conditions
Compatible with a wide range of IoT devices to meet diverse application requirements
Data encryption for enhanced security
Equipped with high-capacity battery and solar panels for extended standby and operational time
Includes a backend management platform for real-time device monitoring

Transmission Modes：

Real-time Transmission: Instant status monitoring and data distribution in critical periods or key areas
Periodic Transmission: Scheduled data collection and distribution during non-critical periods or regions, optimizing satellite resource utilization
Event-triggered Transmission: Automatically establishes emergency communication links for sudden incidents such as flash floods or landslides, reporting disaster information immediately

Technical Specifications：

Item	Parameter
Freq	Uplink：14.0～14.5GHz；Downlink：10.7～12.75GHz
Ant	0.35m / 0.45m / 0.6m
Rate	Satellite：≥384Kbps (0.35m), ≥768Kbps (0.45m), ≥1.5Mbps (0.6m)
	LTE-FDD：Dn 10Mbps，Up 5Mbps
	LTE-TDD：Dn 7.5Mbps，Up 1Mbps
Interface	Etthernet、CAN、RS485、RS232 etc（or under request）
Power	Maximum uplink power≥8W，Average≤35W
System	DC：9～24V/DC Temp：-40～+65℃；Waterproof：IP67

Please contact our sales representatives

sales@apstar.com
